FC Connector Male To Female Fiber Optic Attenuator For Catv / Lan / Telecommunications

Name: FC Connector Male To Female Fiber Optic Attenuator For Catv Lan Telecommunications
Brand: Geehe or OEM
Price: 1 USD

Brand Name : Geehe or OEM

Model Number : Optical Pad Attenuator, Bulkhead Attenuator

Certification : ROHS, REACH, UL, ISO

Place of Origin : Wuhan, China

MOQ : 50 PCS

Price : Price Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1,000pcs per day

Delivery Time : 5-7 working day

Packaging Details : plastic zip bag and carton

Material : Attenuation Fiber

Connector Type : FC

Interface Polish : UPC/APC

Attenuation Value : 1-30 dB

Type : Male to Female

Features : High return loss

Contact Now

FC connector (male to female) type Fiber Optic Attenuator CATV, LAN, telecommunications

Optical Pad Attenuator.pdf

Fiber Optic Attenuator is a component installed in a fiber optic transmission system that reduces the power in the optical signal.
It is often used to limit the optical power received by the photodetector to within the limits of the optical receiver.

Key Features

Environmentally stable

Manufactured with metal-ion doped

Contaminant and scratch free ferrule upon request

Multimode attenuators available

Low back refection, insertion loss

Available attenuation from 1dB to 30 dB

Low PDL

Applications

CATV, LAN, telecommunications

WDM and DWDM systems channel balancing

Optical power equalization

Test and instrument

Optical transmission systems

EDFA, DWDM, Long-haul

Wide-Area networks
Telecommunication networks

Package & Specifications

Packaging	Description
Packaging	Clear Ziploc bag, 1 unit per bag
Physical Characteristics	Parameter	Value
	Plastic material	UL 94V-0 ABS high-impact thermoplastic
	Fiber material	Metal-ion doped optical fiber
Mechanical Characteristics	Parameter	Value
	Operating temperature (℃)	-40 ~ +85
	Storage temperature (℃)	-40 ~ +85
Optical Performance	Parameter	Value
	Operating bandwidth	1250nm~1625nm
	Center wavelength	1310nm and 1550nm
	Attenuation tolerance	1 to 10 dB:±0.5dB 11 to 30 dB:±0.5%dB
	Return loss UPC(dB)	≥45
	Return loss APC(dB)	≥55
	PDL	≤0.1

Ordering information

OAT-	HF-	XX-	X	A-	XX-
	HF: High return loss type	LC: LC	1: APC		01: 01DB
		SC: SC	2:UPC		02: 02DB
		FC: FC			03: 03DB
					04: 04DB
	Attenuator Type	Connector Type	Interface polish		Attenuation Value

EX: OAT-HF-FC-2A-06

FC Connector Male To Female Fiber Optic Attenuator For Catv / Lan / Telecommunications

Product Tags:

optical variable attenuator

single mode attenuator

China FC Connector Male To Female Fiber Optic Attenuator For Catv / Lan / Telecommunications wholesale

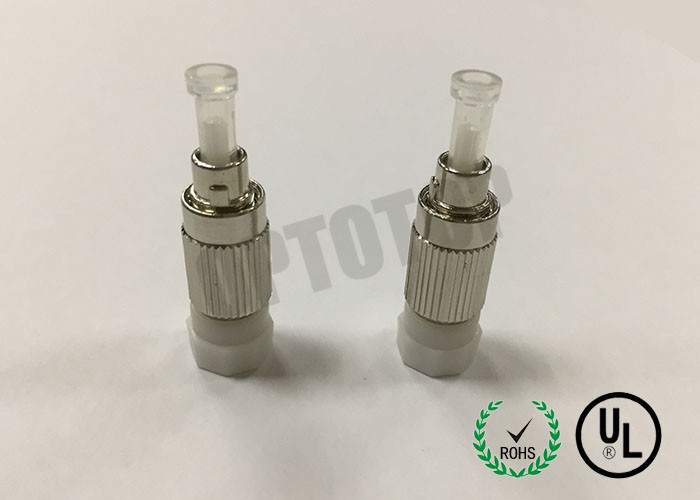

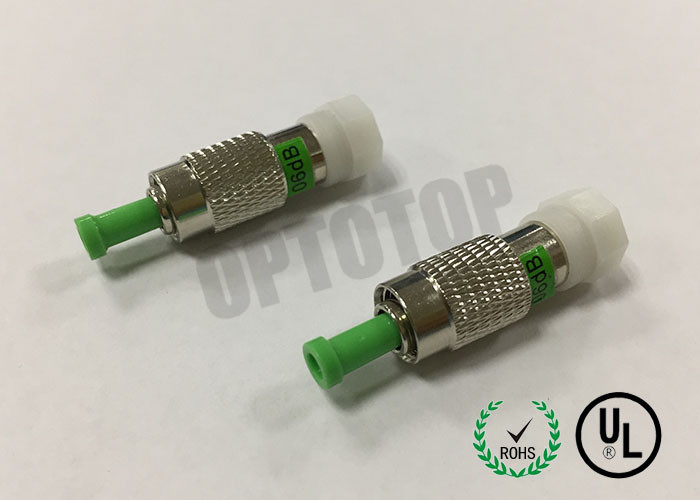

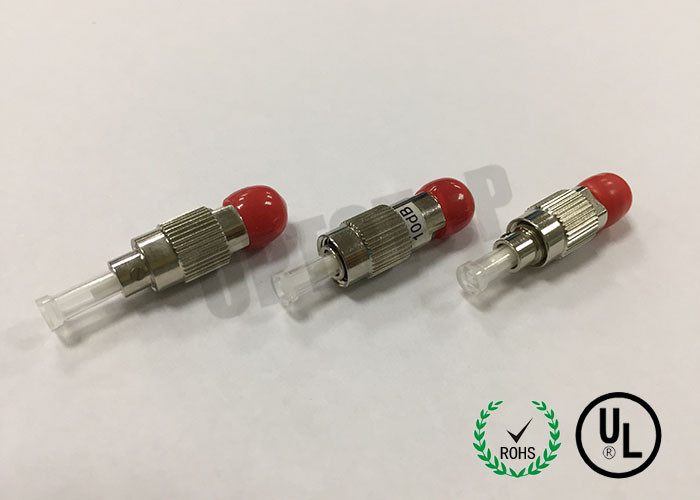

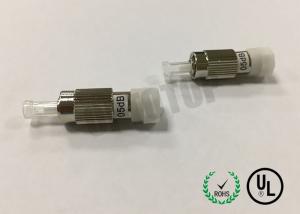

FC Connector Male To Female Fiber Optic Attenuator For Catv / Lan / Telecommunications Images
