Optical Pad Attenuator SM LC/UPC 10dB Male-Female High return loss type
EX: OAT-HF-LC-2A-05
Product Description
Optical pad attenuators are built with metal-ion doped optical fiber and are designed to provide consistent attenuation levels as well as maintaining polarization characteristics. Typical application for an optical pad attenuator is to reduce the amount of optical power by a specific amount as to not saturate a receiver which can limit a system's performance. They also can be used to test the linearity and dynamic range of photo sensors and photo detectors in test and measurement applications.

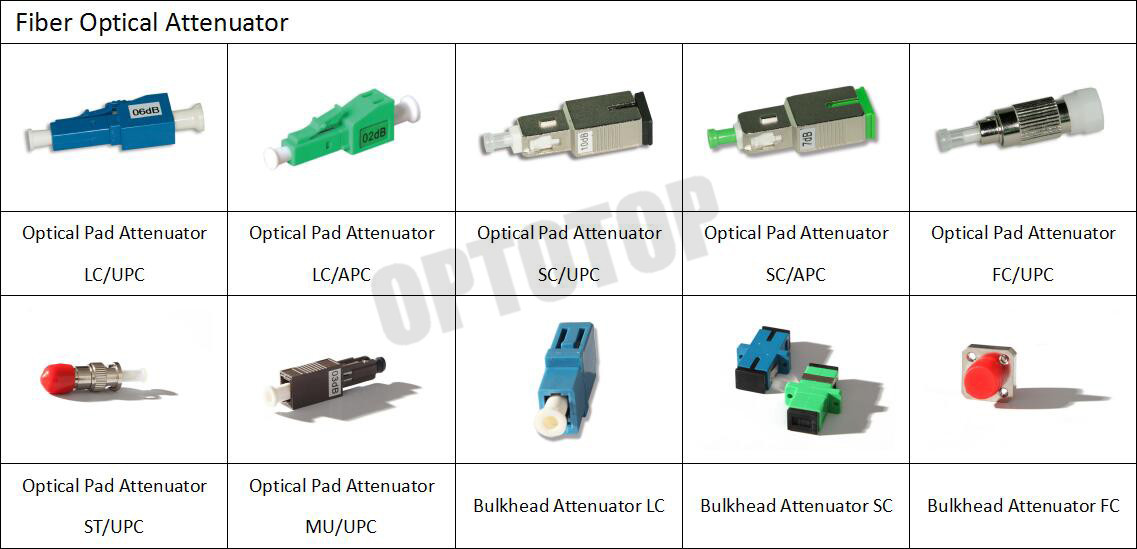

1-30dB Fixed SC/ST/FC/LC/MU Optical Pad Attenuator
Key Features
Environmentally stable
Manufactured with metal-ion doped
Contaminant and scratch free ferrule upon request
Multimode attenuators available
Low back refection, insertion loss
Available attenuation from 1dB to 30 dB
Low PDL
100% tested in factory
Applications
Optical power equalization
Test and instrument
Optical transmission systems
Receiver padding
CATV, LAN, telecommunications
WDM and DWDM systems channel balancing
Warranty:
Responsible for after-sales service 12 monthes
Package & Specifications
| Packaging | Description |
| Clear Ziploc bag, 1 unit per bag |
| Physical Characteristics | Parameter | Value |
| Plastic material | UL 94V-0 ABS high-impact thermoplastic |
| Fiber material | Metal-ion doped optical fiber |
| Mechanical Characteristics | Parameter | Value |
| Operating temperature (℃) | -40 ~ +85 |
| Storage temperature (℃) | -40 ~ +85 |
| Optical Performance | Parameter | Value |
| Operating bandwidth | 1250nm~1625nm |
| Center wavelength | 1310nm and 1550nm |
| Attenuation tolerance | 1 to 10 dB:±0.5dB 11 to 30 dB:±0.5%dB |
| Return loss UPC(dB) | ≥45 |
| Return loss APC(dB) | ≥55 |
| PDL | ≤0.1 |
Ordering information
| OAT- | HF- | XX- | X |
| HF: High return loss type | LC: LC
SC: SC
FC: FC | 1: APC
2:UPC | 01: 01DB
02: 02DB
03: 03DB
04: 04DB |
| Attenuator Type | Connector Type | Interface polish | Attenuation Value |
EX: OAT-HF-LC-2A-05
Type: Adapter (Female to Female), Connector (Male to Female) , In-line type, and variable type for your choice.
Attenuation Range: 1-30dB
Housing color: MM beige, SM UPC Blue, SM APC Green
